Electric Retract ER-120
> Model Weight: until 12kg
> Struts diameter: 13mm
> Mounting diameter: 12mm
> Angle: 3x 90 degrees
> Rotation direction: 3x Inside (jack side)
> Mounting: 3x Low
> Wheels: 2x 65mm (with brakes) + 1x 50mm
Data sheet
| Serial | JP Hobby ER-120 (12kg) |
| Mounting diameter (mm): | 12 |
| Strut(s) Diameter(s) (mm): | 13 |
| Wheel(s) axle(s) diameter(s) (mm) | 5 |
| Weight (gr): | 710 gr |
| Max weight | Up to 12kg |
| Torque | 12kg/cm |
| Rotation angle | 90° |
| Rotation direction | Inside (jack side) |
| Working voltage (Volts): | 5 to 8.4v (2s LiPo recommended) |
| Connection: | JP Hobby JST type plug (+/-) for JP Hobby retracts |
| Material | Aluminium, Rubber |
| Mounting | Low |
More info

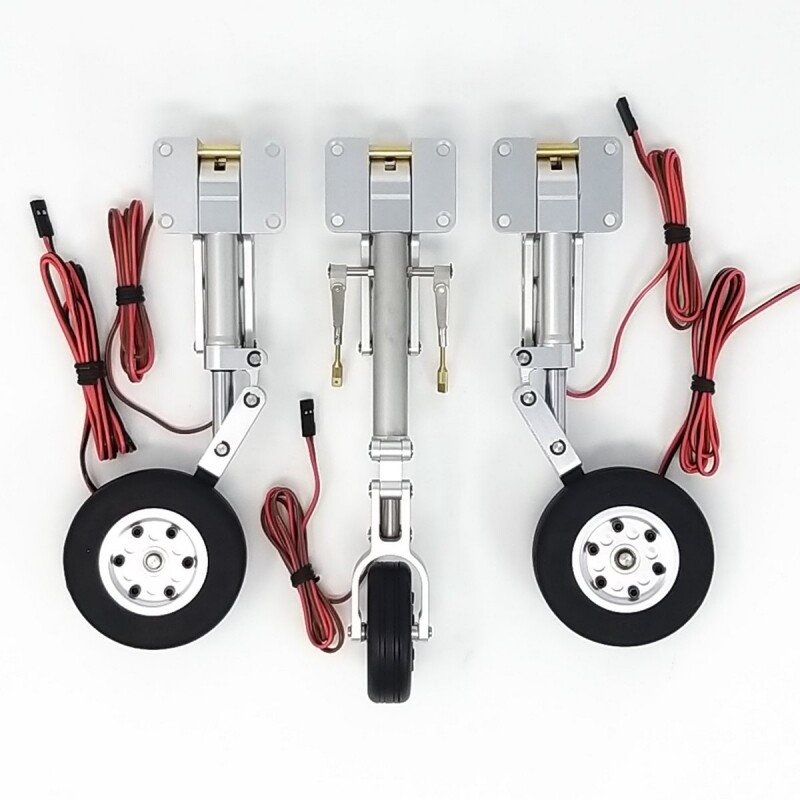

JP Hobby ER-120 tricycle Full set with Brakes and Controller for JSM Xcalibur Ripmax 1.85m or Phoenix Model PC-21 1.77m
CNC Machined aluminium articulated and mechanical suspended « scale » electric landing complete gear set including 1x50mm front wheel and 2x65mm wheels with brakes system and 3 retracts with a JP Hobby V1 version controller retract box which includes an electrical magnetic brake controller. Main gear and single nose gear. For planes up to 12kg.
Specifications
- Materials: Aluminium
- Suspension: mechanical
- Wheels: ball bearings mounted
- For planes up to 12kg
- Linkage for Outward/Return cable control (steel cable not included)
Technical Specifications
- Struts diameter: 13mm
- Mounting Struts diameter: 12mm
- Main gear wheels diameter: 65mm
- Nose gear wheel diameter: 50mm
- Wheels axle diameter: 5mm
- Weight: 710g (for the complete set including the 3 struts, 3 retracts, wheels and the controller)
- Dimensions: for detailed dimensions, please refer to the pictures
- Retracts working voltage: 5-8.4V (2S LiPo)
- Brakes working voltage: 7.2-30V
Content
- 2x Scale metal struts for main landing gear equiped with 65mm wheels & brakes system
- 1x Scale metal strut for nose gear equiped with 50mm wheel and linkage
- 3x Electric Retracts JP Hobby ER-120 12mm (12kg/Low/Inside)
- 1x JP Hobby ER-120 V1 version All Integrated controller retract box (doors opened when the gear is down)
Requires
- 2 cells battery
