JP Hobby ER-150 ES Tricycle Full Set with Brakes (Carf Eurosport 2.0m) + Controller
Electric Retract ER-150ES (Carf Eurosport 2.0m)
> Model Weight: until 20kg
> Struts diameter: 15mm
> Mounting diameter: 15mm
> Angle: 2x 90 degrees + 1x 100 degrees (nose)
> Rotation direction: 2x Inside (jack side) + 1x Outside (opposite jack side)
> Mounting: 3x Low
> Wheels: 2x 75mm (with brakes) + 1x 63mm
Data sheet
Serial | JP Hobby ER-150 (20kg) |
Mounting diameter (mm): | 15 |
Strut(s) Diameter(s) (mm): | 15 |
Wheel(s) axle(s) diameter(s) (mm) | 6 |
Weight (gr): | 1360 |
Max weight | Up to 20kg |
Rotation angle | 90°, 100° |
Rotation direction | Inside (jack side), Ouside (opposite jack)(nose retract) |
Working voltage (Volts): | 7.4 to 8.4v (2s LiPo) |
Connection: | JP Hobby JST type plug (+/-) for JP Hobby retracts |
Material | Aluminium, Rubber |
Mounting | Low |
More info

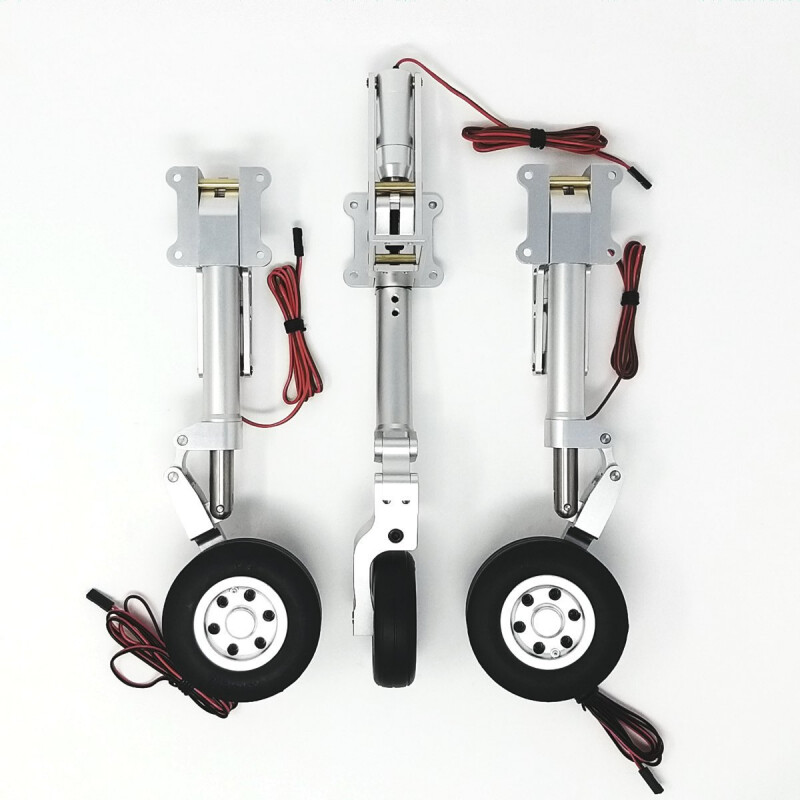

JP Hobby Tricycle full set ER-150ES with Brakes and Controller for Carf Eurosport 2.0m model
CNC Machined aluminium articulated and mechanical suspended « scale » electric landing complete gear set including 75 and 63mm wheels with brakes system and 3 retracts with a JP Hobby V1 version controller retract box which includes an electrical magnetic brake controller. Main gear and single nose gear. For planes up to 20kg.
Specifications
- Materials: Aluminium
- Suspension: mechanical
- Wheels: ball bearings mounted
- For planes up to 20kg
- Servo Plate with control for threaded rod and ball joints
Technical Specifications
- Struts diameter: 15mm
- Mounting Struts diameter: 15mm
- Main gear wheels diameter: 75mm
- Nose gear wheel diameter: 63mm
- Wheels axle diameter: 6mm
- Weight: 1360g (for the complete set including the 3 struts, 3 retracts, wheels and the controller)
- Dimensions: for detailed dimensions, please refer to the pictures
- Working voltage: 7.4-8.4V (2S LiPo)
- Brakes working voltage: 7.2-30V
Content
- 2x Scale metal struts for main landing gear equiped with 75mm wheels & brakes system
- 1x Scale metal strut for nose gear equiped with 63mm wheel and plate
- 2x Electric Retracts JP Hobby ER-150ES 15mm (20kg/Low/Inside)
- 1x Electric Nose Retract JP Hobby ER-150ES 100° 15mm (20kg/Low/Outside)
- 1x JP Hobby ER-150 V1 version All Integrated controller retract box (doors opened when the gear is down)
Requires
- 2 cells battery
- Nose direction servo. Servo size for steering nose wheel : 40x 20x 37mm size with 3.8 to 8kg torque
