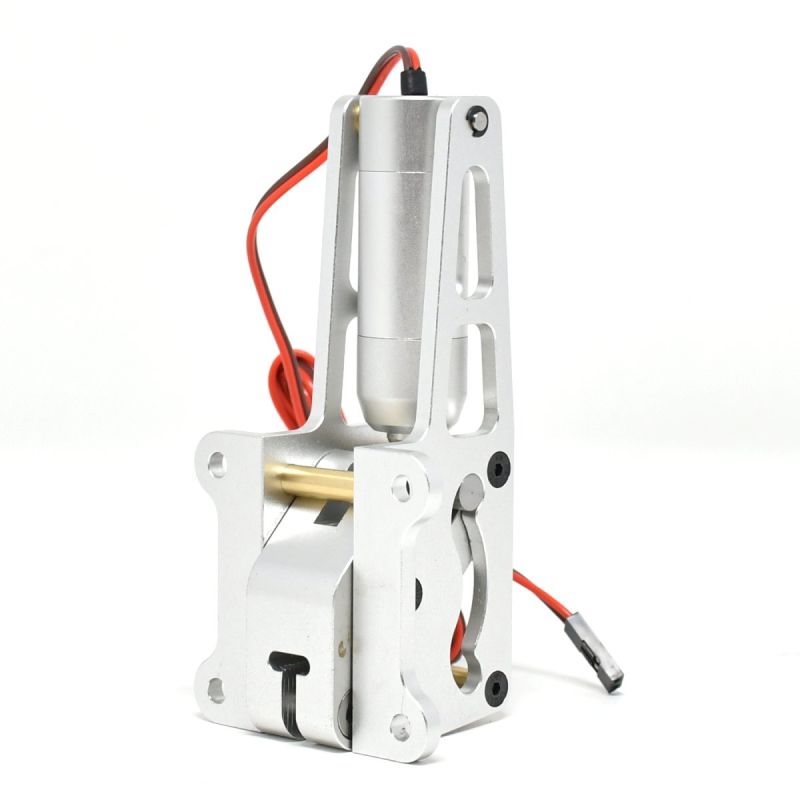

JP Hobby Main Electric Retract ER-150 13mm Sebart PC-21 XL 2.1m (20kg/Low/Outside)
Produktbeschreibung
Electric Retract ER-150 13mm Sebart PC-21 XL 2.1m
> Model Weight: until 20kg
> Struts diameter: 13mm
> Angle: 90 degrees
> Rotation direction: Outside (opposite jack side)
> Mounting: Low
Data sheet
| Serial | JP Hobby ER-150 (20kg) |
| Mounting diameter (mm): | 13 |
| Strut(s) Diameter(s) (mm): | 13 |
| Weight (gr): | 144 gr |
| Max weight | Up to 20kg |
| Torque | 12kg/cm |
| Rotation angle | 90° |
| Rotation direction | Outside (opposite jack) |
| Working voltage (Volts): | 5 to 8.4v (2s LiPo recommended) |
| Connection: | JP Hobby JST type plug (+/-) for JP Hobby retracts |
| Material | Aluminium |
| Mounting | Low |
More info
JP Hobby Main Electric Retract ER-150 13mm Sebart PC-21 XL 2.1m (20kg/Low/Outside)
Electric 100% CNC allow retract for planes up to 20kg for JP Hobby oleo struts ER-150 or equivalent 13mm .
Important: A JP Hobby sequencer is required to control the retract. JP Hobby sequencers allow to control retracts and gear doors servos.
Specifications
- Material: Aluminium
- For plane: up to 20 kg
Technical Specifications
- Struts diameter: 13mm
- Retract weight: 144g
- Retract sizes: 26mm x 102mm x 32mm
- Retract mounting plate sizes: 48mm x 51mm
- Working Voltage: 5 - 8.4V
- Speed: 7 sec (6V) - 5 sec (8.4V)
Contents
- 1x Retract JP Hobby ER-150 unit 13mm (20kg/Low/Outside)
Requires
- JP Hobby sequencer (Please pay attention that only JP Hobby sequencers are qualify to work in accordance of the JP Hobby products).
